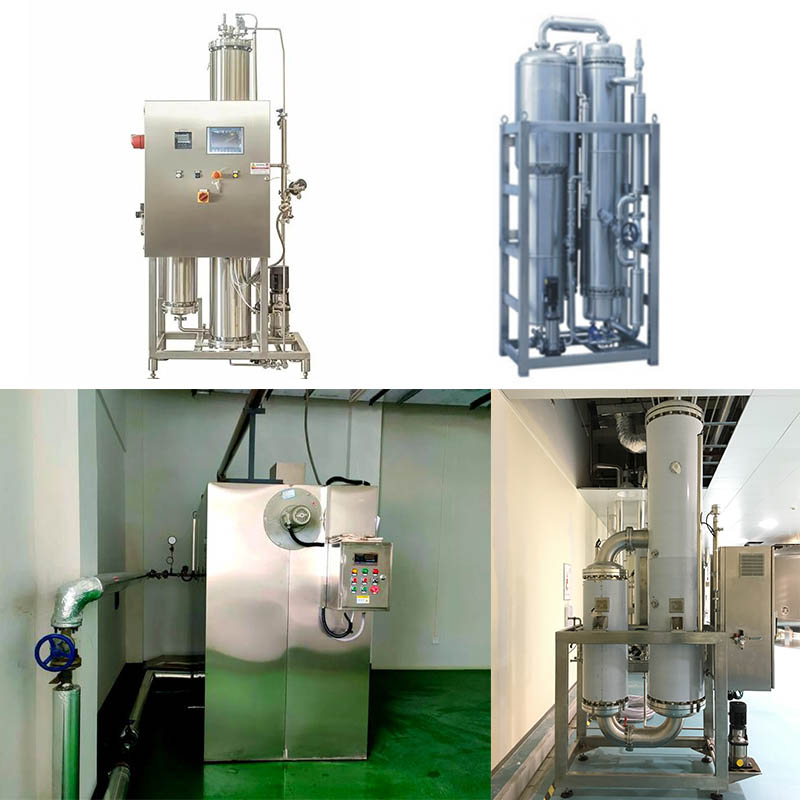

纯蒸汽发生器是一种专为制药、医疗、食品等行业设计的蒸汽生成设备，其核心功能是生产符合严格卫生标准的纯蒸汽，主要用于灭菌消毒和工艺生产。
一、工作原理
1、热源与原料
以去离子水为原料，通过工业蒸汽间接加热或电加热方式产生蒸汽，采用双管板设计和316L不锈钢材质确保卫生安全。
2、分离技术
通过列管降膜蒸发和三级气液分离（如螺旋分离器）去除热原和小水滴，确保蒸汽纯度符合药典标准。
3、控制系统
支持手动、PLC全自动或触摸屏控制，实时监测电导率等参数，并记录运行数据以满足审计追踪要求。
二、核心特性
防污染设计：双管板结构避免交叉污染，全焊接工艺延长使用寿命。
高效节能：紧凑结构降低能耗，部分机型热效率达98%以上。
合规性：产出冷凝水满足中国、美国及欧洲药典对注射用水的要求。
三、应用领域
制药行业：用于灭菌柜、灌装线、生物反应器等设备的湿热灭菌。
食品与医疗：食品加工消毒、医用器械灭菌及血液透析用水制备。
其他工业：如化妆品生产、电子行业高纯水预处理等。
A pure steam generator is a steam generation equipment designed specifically for industries such as pharmaceuticals, healthcare, and food. Its core function is to produce pure steam that meets strict hygiene standards, mainly used for sterilization, disinfection, and process production.
一、 Working principle
1. Heat source and raw materials
Using deionized water as raw material, steam is generated through indirect heating with industrial steam or electric heating. The double tube plate design and 316L stainless steel material ensure hygiene and safety.
2. Separation technology
By using column tube falling film evaporation and three-stage gas-liquid separation (such as spiral separator) to remove heat source and small water droplets, ensure that the steam purity meets pharmacopoeia standards.
3. Control system
Support manual, PLC fully automatic or touch screen control, real-time monitoring of conductivity and other parameters, and recording of operating data to meet audit tracking requirements.
二、 Core Features
Anti pollution design: The double tube plate structure avoids cross contamination, and the full welding process extends the service life.
Efficient and energy-saving: The compact structure reduces energy consumption, and some models have a thermal efficiency of over 98%.
Compliance: The produced condensate meets the requirements of the Chinese, American, and European Pharmacopoeias for injection water.
三、 Application Fields
Pharmaceutical industry: used for wet heat sterilization of sterilization cabinets, filling lines, bioreactors and other equipment.
Food and Medical: Disinfection of Food Processing, Sterilization of Medical Devices, and Preparation of Hemodialysis Water.
Other industries, such as cosmetics production and high-purity water pretreatment in the electronics industry.
