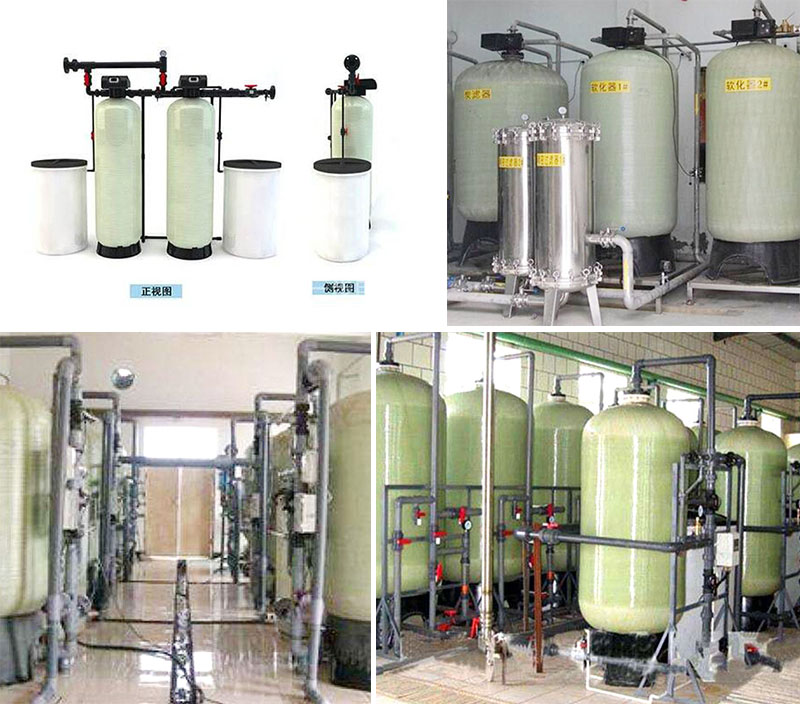

全自动软水器是一种通过离子交换技术去除水中钙、镁离子的自动化水处理设备，广泛应用于工业锅炉、循环水系统、民用生活等领域。以下是其核心要点：
1. 工作原理
离子交换：硬水流经树脂罐时，钙、镁离子被树脂吸附，钠离子释放到水中，生成软化水。
再生过程：树脂饱和后，自动启动反洗、吸盐（再生）、慢冲洗、快冲洗等步骤，恢复树脂交换能力。再生剂通常为食盐溶液。
2. 工作流程
.运行：原水通过树脂层软化。
.反洗：清除树脂表层杂质。
.吸盐再生：盐水置换钙、镁离子。
.冲洗：慢冲洗置换残留盐水，快冲洗确保出水达标。
3. 类型与特点
单罐/双罐：双罐可交替工作，实现连续产水。
再生方式：顺流或逆流再生，逆流更省盐。
控制模式：时间型（定时再生）或流量型（按用水量再生）。
4. 应用领域
工业锅炉、热交换器、食品加工、商业建筑等。
民用领域如洗衣、沐浴设备。
5. 优势
自动化程度高，仅需定期加盐。
结构紧凑，维护简便。
出水硬度低。
A fully automatic water softener is an automated water treatment equipment that uses ion exchange technology to remove calcium and magnesium ions from water. It is widely used in industrial boilers, circulating water systems, civil life, and other fields. The following are its core points:
1. Working principle
Ion exchange: When hard water flows through a resin tank, calcium and magnesium ions are adsorbed by the resin, and sodium ions are released into the water, generating softened water.
Regeneration process: After resin saturation, automatic backwashing, salt absorption (regeneration), slow flushing, fast flushing and other steps are initiated to restore resin exchange capacity. The rejuvenator is usually a salt solution.
2. Workflow
Operation: The raw water is softened through the resin layer.
Backwash: Remove impurities from the surface of the resin.
Salt absorption regeneration: Salt water replaces calcium and magnesium ions.
Rinse: Slow rinse to replace residual saltwater, fast rinse to ensure that the effluent meets the standard.
3. Types and characteristics
Single tank/double tank: Double tanks can work alternately to achieve continuous water production.
Regeneration method: co current or counter current regeneration, counter current is more salt efficient.
Control mode: time-based (timed regeneration) or flow based (regeneration according to water consumption).
4. Application Fields
Industrial boilers, heat exchangers, food processing, commercial buildings, etc.
Civilian fields such as laundry and bathing equipment.
5. Advantages
High degree of automation, only requiring regular salt addition.
Compact structure and easy maintenance.
Low hardness of the effluent.
