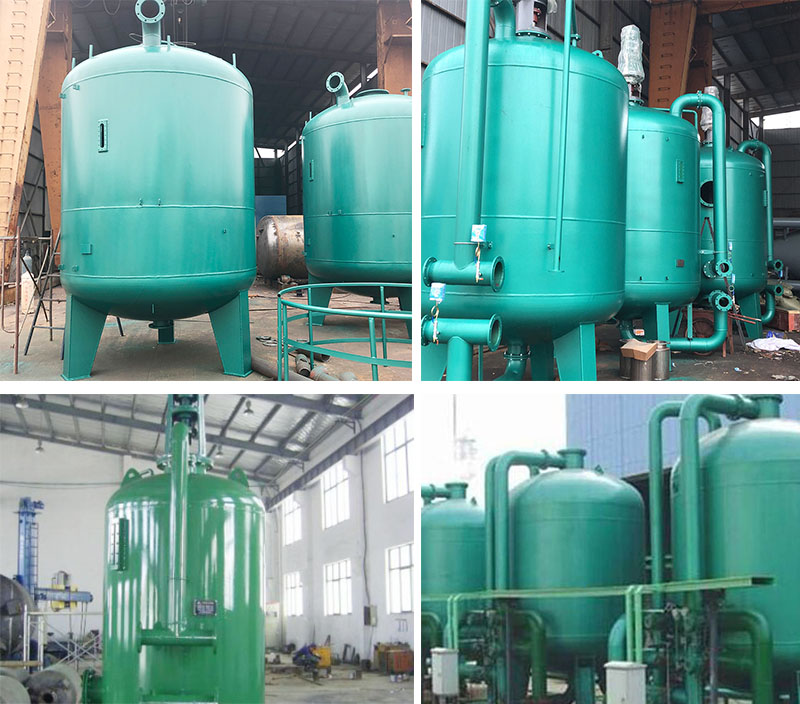

高效纤维束（球）过滤器是一种采用高分子纤维材料作为滤料的水处理设备，广泛应用于电力、石油、化工等领域的给水处理、循环冷却水及废水过滤。
核心优势：
1、高效过滤性能
滤料直径可达微米级，比表面积高达2000-3000m²/m³，悬浮物去除率近100%。
通过活动孔板调节纤维层密度，形成上大下小的孔隙分布，实现深层过滤。
对细菌、病毒、金属离子等污染物有显著去除效果。
2、节能与长寿命
反洗耗水量仅为周期制水量的1-3%，采用气水合洗技术提升反洗效率。
改性纤维球滤料经100次反洗后性能仍保持90%以上。
3、适应性广
适用于含油污水（处理后含油量≤5mg/L）、高悬浮物废水及循环水系统。
滤速可调（20-85m/h），工作压力≤0.6MPa。
Efficient fiber bundle (ball) filter is a water treatment equipment that uses polymer fiber materials as filter media, widely used in water treatment, circulating cooling water, and wastewater filtration in fields such as power, petroleum, and chemical engineering.
Core advantages:
1. Efficient filtering performance
The diameter of the filter material can reach the micrometer level, with a specific surface area of up to 2000-3000m ²/m ³, and a suspended solids removal rate of nearly 100%.
By adjusting the density of the fiber layer through an active orifice plate, a pore distribution with larger pores at the top and smaller pores at the bottom is formed, achieving deep filtration.
Significant removal effect on pollutants such as bacteria, viruses, and metal ions.
2. Energy saving and long lifespan
The water consumption for backwashing is only 1-3% of the periodic water production, and the use of air-water washing technology improves backwashing efficiency.
The performance of the modified fiber ball filter material remains above 90% after 100 backwashs.
3. Wide adaptability
Suitable for oily wastewater (with treated oil content ≤ 5mg/L), high suspended solids wastewater, and circulating water systems.
Adjustable filtration speed (20-85m/h), working pressure ≤ 0.6MPa.
