斜板（管）沉淀池是一种基于浅层沉淀原理的高效水处理设备，通过增设倾斜的平行板或管状结构来提升沉淀效率。
1. 结构与原理
斜板沉淀池：由平行倾斜板组成，板间距通常为50-100mm，倾角50-60°，水流在板间形成层流，颗粒沉降路径短。
斜管沉淀池：采用蜂窝状管状组件（如六角形或矩形管），直径25-50mm，倾角60°，水力半径更小，层流状态更稳定。
2. 技术优势
效率提升：沉淀面积增加3-5倍，表面负荷可达3-5m³/(m²·h)，停留时间缩短至15-40分钟。
适用性：斜管池适合高浊度原水（如黄河水），斜板池更适用于含油或纤维杂质废水（如造纸厂）。
3. 分类与水力条件
流向分类：分为同向流（水、泥同向）、异向流（逆向）和侧向流三种。
水力参数：斜管池雷诺数（Re）通常低于200，斜板池弗劳德数（Fr）约10⁻³~10⁻¹。
4. 应用与维护

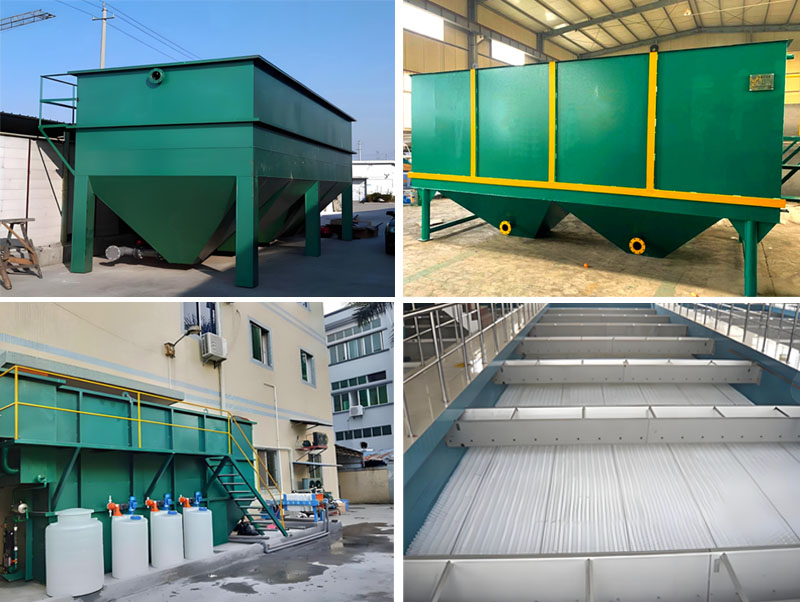

工业应用：如陕西康博环保的集成式废水处理系统中，斜板沉淀池用于去除悬浮物和沉淀物1。
维护成本：斜板间距较大，不易堵塞，维护成本较低。
The inclined plate (tube) sedimentation tank is an efficient water treatment equipment based on the principle of shallow sedimentation, which improves sedimentation efficiency by adding inclined parallel plates or tubular structures.
1. Structure and principle
Slant plate sedimentation tank: composed of parallel inclined plates with a spacing of usually 50-100mm and an inclination angle of 50-60 °. The water flow forms laminar flow between the plates, and the particle settling path is short.
Slant tube sedimentation tank: using honeycomb shaped tubular components (such as hexagonal or rectangular tubes), with a diameter of 25-50mm, an inclination angle of 60 °, a smaller hydraulic radius, and a more stable laminar flow state.
2. Technical advantages
Efficiency improvement: The sedimentation area increases by 3-5 times, the surface load can reach 3-5m ³/(m ² · h), and the residence time is shortened to 15-40 minutes.
Applicability: The inclined tube tank is suitable for high turbidity raw water (such as Yellow River water), while the inclined plate tank is more suitable for oily or fiber impurity wastewater (such as paper mills).
3. Classification and Hydraulic Conditions
Flow direction classification: divided into three types: same direction flow (water, mud in the same direction), opposite direction flow (reverse direction), and lateral flow.
Hydraulic parameters: The Reynolds number (Re) of the inclined tube pool is usually below 200, and the Froude number (Fr) of the inclined plate pool is about 10 ⁻³~10 ⁻¹.
4. Application and maintenance
Industrial application: In the integrated wastewater treatment system of Shaanxi Kangbo Environmental Protection, the inclined plate sedimentation tank is used to remove suspended solids and sediment.
Maintenance cost: The spacing between the inclined plates is relatively large, making it less prone to blockage and resulting in lower maintenance costs.
