反渗透海水/苦咸水淡化设备是一种基于膜分离技术的高效水处理系统，通过高压驱动实现盐分与水的分离，广泛应用于沿海地区、海岛及苦咸水分布区域。以下是其核心技术与应用解析：
一、技术原理与核心组件
1.反渗透膜分离
利用半透膜（孔径约0.1纳米）在高压（5-8MPa）下选择性透过水分子，截留盐分、有机物及微生物。
膜材料为聚酰胺复合膜，耐腐蚀且寿命长。
2.系统组成
预处理单元：多介质过滤器+活性炭吸附，去除悬浮物、胶体及余氯。
高压泵：提供稳定压力（如柱塞泵），能耗较蒸馏法降低。
智能控制系统：实时监测水质（电导率、浊度）并调节运行参数。
二、典型应用场景
1.海岛与沿海地区
解决淡水短缺问题，如我国沿海城市通过反渗透设备实现日均10万吨淡水供应。
小型设备（如船载式）可满足渔民或驻岛部队用水需求。
2.工业与农业
为电厂、化工厂提供锅炉补给水，降低结垢风险。
苦咸水淡化后用于农田灌溉，提升作物产量。
Reverse osmosis seawater/brackish water desalination equipment is an efficient water treatment system based on membrane separation technology, which separates salt and water through high-pressure driving. It is widely used in coastal areas, islands, and brackish water distribution areas. The following is an analysis of its core technologies and applications:
Technical principles and core components
1. Reverse osmosis membrane separation
Using a semi permeable membrane (with a pore size of approximately 0.1 nanometers) to selectively permeate water molecules under high pressure (5-8 MPa), intercepting salt, organic matter, and microorganisms.
The film material is polyamide composite film, which is corrosion-resistant and has a long service life.
2. System composition
Pre processing unit: Multi media filter+activated carbon adsorption to remove suspended solids, colloids, and residual chlorine.
High pressure pump: provides stable pressure (such as plunger pump), with reduced energy consumption compared to distillation method.
Intelligent control system: Real time monitoring of water quality (conductivity, turbidity) and adjustment of operating parameters.

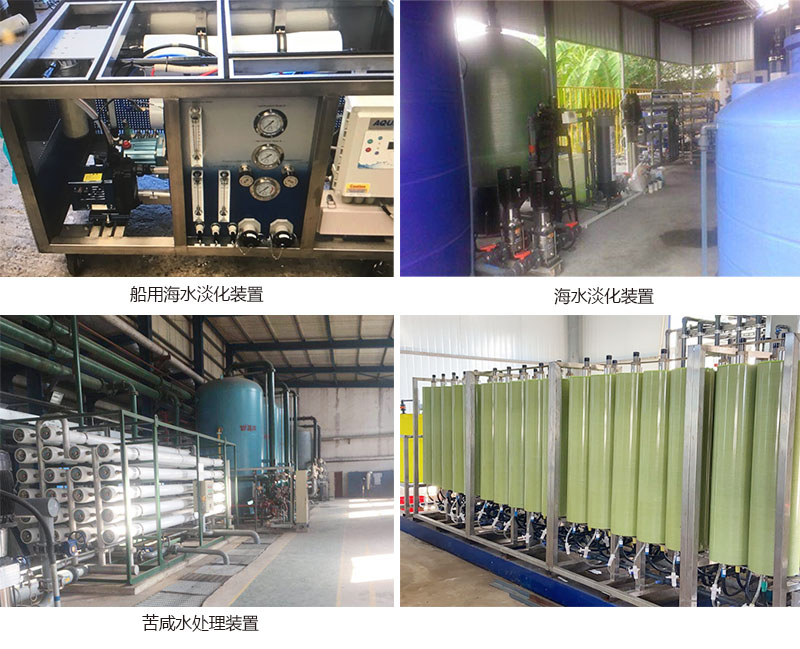

Typical application scenarios
1. Islands and coastal areas
To solve the problem of freshwater shortage, for example, coastal cities in China can achieve a daily supply of 100000 tons of freshwater through reverse osmosis equipment.
Small equipment (such as shipborne) can meet the water needs of fishermen or island troops.
2. Industry and Agriculture
Provide boiler feedwater for power plants and chemical plants to reduce the risk of scaling.
After desalination of brackish water, it is used for irrigation in farmland to increase crop yields.
