砂水分离器是一种通过物理方式实现砂粒与水高效分离的设备，主要应用于污水处理、建筑工地、工业水处理等领域。其核心功能是通过特定结构设计分离混合液中的固体颗粒，实现水资源净化和废物回收。
一、主要类型
.旋流式：利用离心力分离砂粒，适用于细小颗粒。典型结构包括偏心进水口和锥形沉降区，通过旋转流场加速颗粒沉降。

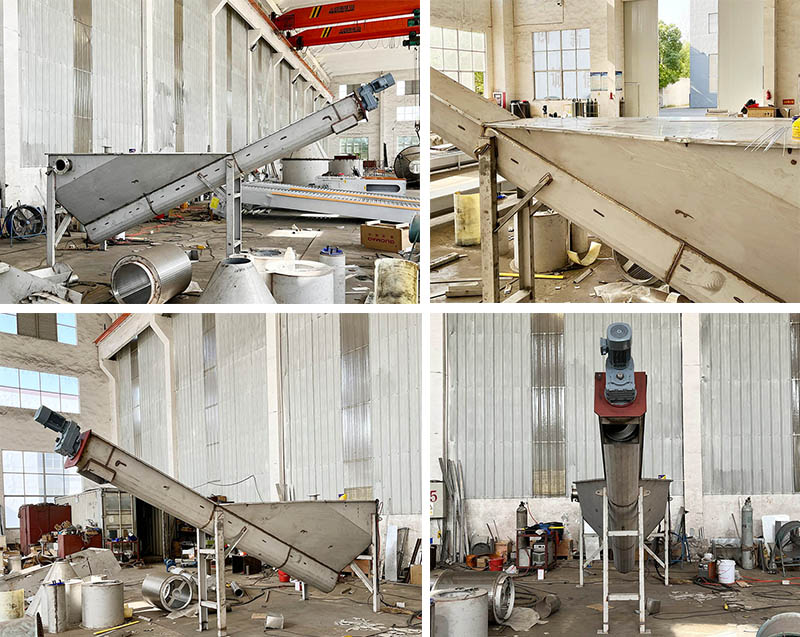

.螺旋式：采用无轴螺旋推动砂粒脱水，常见于污水处理厂沉砂池，结构含U型槽、溢流堰等组件。
.重力式：依赖颗粒自重沉降，适合低浓度混合液。
.压滤式：通过滤层拦截颗粒，过滤精度较高。
二、工作原理
旋流式：高压水流切向进入后形成旋流，砂粒受离心力作用沉降至锥底，清水从顶部排出。
螺旋式：砂水混合液进入水箱后，砂粒沉积于槽底并由螺旋推送至排砂口，清水经溢流堰排出。
辅助设计：部分设备配备防返混构件（如锥形挡板）或二级过滤单元以提升分离效果。
三、应用场景
污水处理：保护后续设备免受砂粒磨损。
建筑工地：回收砂粒减少资源浪费。
工业领域：如钢铁厂、化工厂的废水处理。
Sand water separator is a device that efficiently separates sand particles from water through physical means, mainly used in fields such as sewage treatment, construction sites, and industrial water treatment. Its core function is to separate solid particles in the mixed liquid through specific structural design, achieving water resource purification and waste recycling.
1、 Main types
Cyclone type: uses centrifugal force to separate sand particles, suitable for small particles. A typical structure includes an eccentric inlet and a conical settling zone, which accelerates particle settling through a rotating flow field.
Spiral type: using shaftless spiral to drive sand dewatering, commonly found in sedimentation tanks of sewage treatment plants, with a structure including U-shaped grooves, overflow weirs, and other components.
Gravity type: relying on the self weight settlement of particles, suitable for low concentration mixed liquids.
Filter press type: intercepting particles through the filter layer, with high filtration accuracy.
2、 Working principle
Cyclone type: High pressure water flows tangentially into the cone, forming a vortex. Sand particles settle to the bottom of the cone under centrifugal force, and clear water is discharged from the top.
Spiral type: After the sand water mixture enters the water tank, the sand particles settle at the bottom of the tank and are pushed by the spiral to the sand discharge outlet. The clear water is discharged through the overflow weir.
Auxiliary design: Some equipment is equipped with anti backflow components (such as conical baffles) or secondary filtration units to enhance separation efficiency.
3、 Application scenarios
Wastewater treatment: protect subsequent equipment from sand abrasion.
Construction site: Recycling sand particles to reduce resource waste.
Industrial sector: such as wastewater treatment in steel mills and chemical plants.
